Jmeter Tips & Tricks – Tip 9

Tip 9 – Generating a report from your log file

When running a performance test with Jmeter it is generally adviced to run the test  in non-gui mode and to log your responses to a file. My typical command for a performance test looks something like this:

Jmeter –n –t TestScenario.jmx –j jmeter-TestRun01.log –l yyyyMMdd-TestRun-10000Threads-300TPS.jtl

Where the commandline flags have the following meaning:

-n => Non-GUI

-t => the testscenario JMX file to run as  a test

-j => where to write the Jmeter logfile

-l => where to write the sample results to. This typically gets a JTL-extension

Once you have run your test successfully the real work of a performance tester starts, analyzing the outcomes and communicating the results and of course providing advice what to do with these results.

For the result-graphs you can of course use the Jmeter Listeners. You can also use Excel. But neither are a very easy nor a friendly way to do it.

Generally speaking a bit of JTL log is not very friendly to read:

timeStamp,elapsed,label,responseCode,responseMessage,threadName,dataType,success,failureMessage,bytes,sentBytes,grpThreads,allThreads,URL,Latency,Encodi
ng,SampleCount,ErrorCount,IdleTime,Connect
1504276591952,296,GET - Login screen,200,OK,jp@gc - Ultimate Thread Group - EA-OP 1-100,text,true,,523937,1116,1,1,https://poc-15.educus.nl/app/login,10
5,UTF-8,1,0,0,86
1504276592251,259,GET - Login screen,200,OK,jp@gc - Ultimate Thread Group - EA-OP 1-99,text,true,,523937,1116,2,2,https://poc-15.educus.nl/app/login,93,
UTF-8,1,0,0,77
1504276592552,282,GET - Login screen,200,OK,jp@gc - Ultimate Thread Group - EA-OP 1-98,text,true,,523937,1116,3,3,https://poc-15.educus.nl/app/login,98,
UTF-8,1,0,0,80
1504276592851,292,GET - Login screen,200,OK,jp@gc - Ultimate Thread Group - EA-OP 1-97,text,true,,523937,1116,4,4,https://poc-15.educus.nl/app/login,105
,UTF-8,1,0,0,88
1504276593151,254,GET - Login screen,200,OK,jp@gc - Ultimate Thread Group - EA-OP 1-96,text,true,,523937,1116,5,5,https://poc-15.educus.nl/app/login,97,
UTF-8,1,0,0,80
1504276593451,212,GET - Login screen,200,OK,jp@gc - Ultimate Thread Group - EA-OP 1-95,text,true,,523937,1116,6,6,https://poc-15.educus.nl/app/login,87,
UTF-8,1,0,0,72
1504276593751,225,GET - Login screen,200,OK,jp@gc - Ultimate Thread Group - EA-OP 1-94,text,true,,523937,1116,7,7,https://poc-15.educus.nl/app/login,89,
UTF-8,1,0,0,73
1504276594051,210,GET - Login screen,200,OK,jp@gc - Ultimate Thread Group - EA-OP 1-93,text,true,,523937,1116,8,8,https://poc-15.educus.nl/app/login,90,
UTF-8,1,0,0,74
1504276594351,214,GET - Login screen,200,OK,jp@gc - Ultimate Thread Group - EA-OP 1-92,text,true,,523937,1116,9,9,https://poc-15.educus.nl/app/login,88,
UTF-8,1,0,0,73
1504276594651,228,GET - Login screen,200,OK,jp@gc - Ultimate Thread Group - EA-OP 1-91,text,true,,523937,1116,10,10,https://poc-15.educus.nl/app/login,9
1,UTF-8,1,0,0,75

Thankfully JMeter has a very nice, although not very elegant solution to this. I consider this not very elegant since you can only trigger it via commandline. The results however are quite elegant and pretty to view.

Run the following command to get your pretty report once your test is finished:

jmeter -g yyyyMMdd-TestRun-10000Threads-300TPS.jtl -o WriteThisToACleanDirectory

This generates a very nice HTML/js based reporting dashboard. I will refrain from going into details about how nice the dashboard has become over the years, you can read all that is in the dashboards on the Apache Jmeter site.

The landing page may look something like this:

The graphs on the dashboard are all ineractive, you can zoom in on specific details, filter out specifi requests etc. I really like what has become of these reports.

The negative side of that way of generating a report is that you still have to do it once you are done running your performance tests.

That too can be solved! When running tests from a commandline I generally use a command close to this:

jmeter -n -t TestScenario.jmx -j jmeter-TestRun01.log -l yyyyMMdd-TestRun-10000Threads-300TPS.jtl -e -o OUTPUTDIRECTORY > /dev/null 2>&1 &

The addition of the dashboard generation is done with the

-e -o OUTPUTDIRECTORY

flags and arguments. The little extra sauce I give is that I generally open a second console where I tail the JMeter log and potentially the JTL log. So in my main window, where I started the testrun, I prefer to have my commandline available to do useful things such as shutdown JMeter if so required. Hence I send the console output to

/dev/null

and send any possible error stream directly to the output stream (which again is sent into the void that is /dev/null

Last but not least I background the process with the & in order for me to have my console back and available.



Jmeter Tips & Tricks – Tip 8

Tip 8 – Generating a specific amount of hits per second

JMeter is generally oriented towards a performance test approach where the load is based on a specific set of concurrent users, or threads. When talking metrics with systems engineers however, you will generally hear something more towards hits per second, requests per second or transactions per second. So how do you get JMeter to generate a certain amount of hits per second?

There are of course several ways to go about this, but in this article I will limit myself to a fairly simple method, using a Timer.

Constant Throughput Timer

constant throughput timer
The Constant Throughput Timer can be very useful in generating a (surprise!!) constant throughput.

What this timer does, is make sure that, regardless of the amount of threads you have started, the test will pause whenever needed to throttle the amount of requests per second. It is good to note by the way, that the timer is NOT based on milliseconds or seconds, but instead is counting per minute.

When your requirements state that the application (and server) should manage to survive some 60 hits/second, you will need to calculate your hits per second back to the actual amount of hits per minute (e.g. 10 hits/second * 60 seconds = 600 hits/min).

Keep in mind that there may be a difference in your load requirements, you have to really dig up from your customer/product owner or whoever came up with the performance requirements what exactly they expect. When they define hits per second, what do they mean with that? is that pageviews or is that actual requests (e.g. 1 page can consist of more requests for HTML, CSS, JS, Images etc.). Always verify and double check that what you mean with hits per second or requests per second is indeed what they also mean!

Understanding the “Calculate Throughput based on” variable constant throughput timer

There are several ways the throughput can be calculated and enforced. The default setting is “this thread only“, in my eyes however the most logical setting (based on the above requirements) is the “all active threads” setting.

  • this thread only – each thread, as defined in your Thread Group thread properties, will try to stick to the target throughput. This means that when you have 150 threads, your throughput will be 150 * Target throughput.
  • all active threads in current thread group – the target throughput is divided across the active threads in the thread group. In other words, this will give you the actual target throughput as you have configured. This throughput is for this specific thread group only! Threads themselves are delayed and started based on when this particular thread last ran. e.g.
  • all active threads – When you have more than one thread group, this setting becomes interesting. This will divide the target throughput across all active threads in all Thread Groups. Be aware, each Thread Group requires a Constant Throughput timer with the same settings for this to work.
  • all active threads in current thread group (shared) – Each thread is delayed based on when any thread in the group last ran, meaning the threads run consecutively rather than concurrently. For the rest this setting does exactly the same as the “all active threads in current threadgroup”, e.g. this will give you the actual target throughput as you have configured.
  • all active threads (shared) – Each thread is delayed based on when any thread in the group last ran, meaning the threads run consecutively rather than concurrently. Any thread here has again a wider meaning than in the previous setting, this setting runs across all threads and thread groups you have configured.

How do you know which setting you need?

These different settings can be quite confusing to any Jmeter user, even to experienced users. I would therefore recommend the following:

Make sure you put the constant throughput timer in the root of your testplan (e.g. at the highest level) and let it dictate the throughput of all of your threads and thread groups, e.g. “all active threads“. That way you know for sure what the actual throughput if your test is.

In the case of a somewhat complex environment, where you have several thread groups with each different amounts of requests per second, make sure you set the timer within the root of that particular thread group and stick to the “all threads in current thread group“.

Jmeter Tips & Tricks – Tip 7

Tip 7 – adjusting the JVM HEAP size, why and how to

When running JMeter tests, it may happen that the test is not successful and JMeter crashes with an OutOfMemoryError. This can happen due to all kinds of things, most of the time however you are trying to generate too many threads with an insufficient amount of memory allocated to your Java Virtual Machine. More information on what the HEAP is, how the JVM deals with the HEAP can be found here.

The HEAP size is defined on startup of your java application, in our case when we start JMeter. In other words, adjusting the HEAP means we will need to adjust the startup script. The startup script can be found in your JMeter “bin” directory. In my case, on a linux environment, it can be found here:

/opt/apache-jmeter-3.1/bin

When opening the “jmeter” file in your favorite editor, scroll down until you hit a line stating the following (on Windows based systems open “jmeter.bat”):

# This is the base heap size -- you may increase or decrease it to fit your
# system's memory availability:
HEAP="-Xms512m -Xmx512m"

On Windows systems the line looks slightly different, in the jmeter.bat, due to the nature of BATCH files and DOS working differently from Linux systems

set HEAP=-Xms512m -Xmx512m

When you adjust this line to read something like this:

# This is the base heap size -- you may increase or decrease it to fit your
# system's memory availability:
HEAP="-Xms1024m -Xmx4096m"

the HEAP size will by default be larger, meaning you do not have to think about it anymore when starting JMeter. This does pose one possible challenge, it slows down the startup of JMeter somewhat (at least on most machines I have done it). This seems to be because the JVM will first allocate all the memory you defined in the Xms param, ensuring the JVM is at the appropriate size instantly.

So, we changed the values of Xms and Xmx, what do these two mean?

-Xms ==> minimum heap size. This is the value JAVA will attempt to claim in order to run JMeter. This does NOT imply that it immediately gets this fully allocated by the OS. The OS typically doesn't give an application all blocks it asks for until really needed.
-Xmx ==> maximum heap size. This is the value JAVA will use as a maximum size of the JVM. When JMeter passes this level, an OutOfMemoryError will occur once more.

An alternative, more flexible setup to change the heapsize is to pass the JVM arguments on the commandline when starting JMeter. This of course assumes you are comfortable in commandline and start JMeter from commandline.

[user@machine ]$ JVM_ARGS="-Xms1024m -Xmx2048m" jmeter

Be Aware!

Please always make sure you leave enough memory for your OS and other applications to run on your machine when allocating more HEAP space to a JVM. Not leaving enough memory for your OS to keep running will result in your machine simply being non-responsive and thus your test and testresults being rendered useless.



Jmeter Tips & Tricks – Tip 6

Tip 6 – Effective use of Transaction Controllers

Whether you are trying to script a website, a webservice or something else, quite often you find that one functional action results in several requests to a server.

Take for example an average login-request seen from a functional point of view:

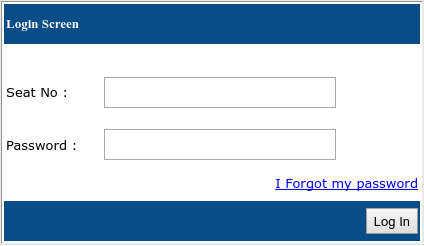

LoginScreenA user types in username & password and hits the Login button.
If the username/password combination was valid the user is than shown a dashboard.

This seems straight forward enough from a functional point of view. What actually happens however is a bit more than just this one request:

  • Username/password are sent to an authentication service
  • Authentication service sends an authenticated message back (assuming you are indeed authenticated by the application).
  • The authentication message contains a redirect away from the authentication service to the dashboard a user expects. This redirect contains information such as the AuthToken that was just recieved from the service.
  • Subsequent requests for the Dashboard-contents are sent.

In a simple setup, this may require only 1 request in Jmeter, just the login. Since Jmeter can take care of any redirecting itself.

Making Jmeter responsible for blindly following all redirects however, does not always give you the performance metrics you may want or need. When you need to know exactly which part of the login sequence is giving your users some form of grief, you may want to build these requests completely yourself in Jmeter. That will give you the possibility to see if there is high latency, big loads etc. on a per-request basis.

You may end up with something like this: jmeter-4requests

The 4 requests you see in this example are all separate requests used to log a user into the system and get the base information for the first screen of the application.

This sequence could have been captured in 1 request, Login, since the other requests are handled by HTTP/302 responses.

By building the requests yourself and clustering them together in a Logic Controller you now can see and measure how long the entire login request, step by step, takes. The Logic Controller I have used here is a Transaction Controller, this controller can add all child-transactions into one single response time for you by setting the appropriate flag. TransactionController
When set, “Generate parent sample” will ensure that your statistics have a single statistic for the complete set of requests, yet you can easily gain information on the separate requests while running a loadtest by unchecking this flag and looking into each step by itself as well.

This gives you the possiblity to find out which of the steps slows the entire transaction of logging in to your application (or whichever functional step you define in a Transaction Controller of course) .

Jmeter Tips & Tricks: Tip 3

Tip 3: URL Encoding

This tip is a fairly simple one, but I often use it when building scripts.

URL encoding is quite often needed in heavier webapplications on the variables you extract with the Regular Expression extractor or other extractors.

How do you make this variable URL Encoded when not using the standard “Parameters” but you need to use the Body Data instead?

The given variable we are going to encode is something I see rather too often, a ViewState. In order to grab this thing from the page I have the following regular expression:

Reference Name: VIEWSTATE
Regular Expression: id="__VIEWSTATE" value=(.+?)"

So, now we have a variable ${VIEWSTATE} which needs URL Encoding. The way to do this, within the Body Data is as follows:

${__urlencode(${VIEWSTATE})}

So whatever your variable is, just put it in between the brackets in the ${__urlencode()} and you have your encoded variable.



JMeter – private remote servers or a service?

Over the past year I have spent a lot of time in close collaboration with Apache JMeter. I used JMeter as a standalone platform, in collaboration with several tools out there and with my own servers. Over the next few posts I will elaborate a bit more on what I have learned from working with tools like BlazeMeter, Loadosophia as well as working with your own remote servers and Jmeter. On top of that I will share some things I consider good practices to use when working with JMeter and building elaborate test scenarios in it.

JMeter and remote servers

Apache JMeterJMeter is great as a stand-alone load generator, however the moment you need to generate a substantial load or a distributed load, you will require the use of more servers. There are several possibilities to add external servers to JMeter. You can use a loadgeneration platform such as BlazeMeter and Flood.io or you can choose to use your own machines (Disclaimer: I have only worked with Flood and BlazeMeter as services, so I only mention these two. There may very well be other services out there I am not (yet) aware of).

Why use your own remote servers?

Virtual Private ServerAlthough there are several commercial options to run JMeter tests from a cloud-platform, it might be useful to have your own servers running. Your own machines, for example Virtual Private Servers, will give you at least the following advantages, please bear in mind these are the main reasons for me to run private servers. It may very well be that you have different reasons for doing the same (I’d be happy to hear them btw!):

  • Availability within firewalls: Not all applications are available outside of firewalls. For quite a lot of companies it is not an option to allow external addresses, especially cloud services, within their firewalled environment. When this is the case in your organisation it can be very useful to have your own load generator hosted inside the firewall.
  • Geographical location: not each and every country has platforms available for load generation. Although platforms like Blazemeter have a lot of different locations available, it may very well be that your particular country is not available through a serviceprovider. However getting your own, hosted, machines within a country is generally not too difficult to do. Keep in mind though whenever you want to use something like a Virtual Private Server to verify with the hosting company whether they allow load generation from within their network!
  • Control: a fairly straightforward reason is in order for you to have full, unlimited control over the load generating servers. If you have your own (virtual) servers running you can easily adjust settings, properties and other things in order to make it fully match your (customers) needs.

Why use a service?

BlazeMeterflood.io

Even though there are quite some reasons for using your own machines, the advantages of using a service like BlazeMeter or Flood.io  are plenty, I will just highlight the few that for me have tipped the scales several times in favor of a service.

  • Maintenance: Setting up your own servers is time consuming and therefore not cheap. These servers need maintenance even though you quite likely do not constantly need them. A Service is just there. You buy a subscription, be it with a time constraint (monthly) or a load constraint (max amount of concurrent users) or something like that, but the service is simply at your fingertips. The moment you need it, you have it.
  • Multiple locations: the JMeter based services generally make use of the Amazon AWS cloud, thus giving you, the user, an immense amount of servers at your disposal. With this comes a huge worldwide distribution, which can be very advantageous for big world-wide used applications.
  • Support: both mentioned platforms have a very solid support base for their customers. If you have questions, if your tests seem to not run properly or you simply have issues getting something done, there generally is a good support platform available. You can use forums or the actual helpdesk, but either way, there is a good, solid, commercial support-base to help resolve your issues.

In the end, I choose per assignment what best fits my needs. Sometimes I use the VPS, sometimes I use a service. It is important you at least think about what best suits your needs for the test you are about to build and execute.

Selecting performance test tooling – Part 3

A birthday post… and no, the story has nothing to do with my birthday, it’s just that today is my birthday.

This post became a bit longer than I initially intended so here are some links to jump directly to the specific content:

Some challenges in the PoC…

Following up on my previous posts (here and here) on this topic while executing the Proof of Concept I have run into some interesting challenges.

For starters, I am convinced I started the PoC the wrong way around; I started off with implementing some things in Sikuli rather than in SilkTest. Since SilkTest is, to me, less intuitive than Sikuli, since SilkTest tries to encapsulate a lot of different automation approaches in one tool, whereas Sikuli is focussed on one methodology only, I should have started with that one. However, I didn’t and there is nothing I can do about that anymore now.

Secondly, the application we are about to put to the test is an application served from a Citrix platform, in other words, it is a remote application. The charter for this project is simple: Measure the performance of the application as the user would experience it. In other words, measure its performance via the RDP tunnel and not directly on the Citrix machine.

The setup is basically as shown in this image (simplified of course)

Citrix simplified setup

Simplified picture of the Citrix application setup

Sikuli Sikuli Script Logo

For those not farmiliar with Sikuli, here’s what they say about themselves:

Sikuli Script automates anything you see on the screen. It uses image recognition to identify and control GUI components. It is useful when there is no easy access to a GUI’s internal or source code.

In other words, Sikuli is fully based on image recognition and pattern recognition rather than following the industry standard Object Model.

The good, the bad and the ugly.

Stepping away from the Object Model has some advantages, especially in this application setup, but I will get to that when discussing the Borland setup.

The good

Considering this is a Proof of Concept I have simply taken Sikuli out of the box, using Sikuli-IDE. The IDE works nice, simple and intuitive. It was very easy to start the RDP application and login without using any screenshots. The basic use of Sikuli is very simple and intuitive. Scripting in it is simple and logica, at least if you have a basic understanding of other scripting languages and/or programming.

Functionally stepping through the application was easy, just a few small screenshots were needed to load reports and verify that the report indeed is loaded successfully. In other words, the ease of use is excellent!

The bad and the ugly

I am mashing the bad and the ugly into one big pile since they are closely connected.

Sikuli-Code-SnippetThe first thing I disliked a lot is that Sikuli is 100% depending on Java 6, try running it on 7 and you have a problem (as in, it simply doesn’t work).

Another bad part of Sikuli is that even if I wanted to, I cannot add Object ID’s. This means that if I want to verify the existence of something, it needs to be done with screencaps and recognition thereof. Which leads me to the ugly. Screencaps are not the nicest way to identify objects, in fact they are ugly and not friendly to use, since objects can occur, in a similar look and feel, several times on one screen. This results so now and again in the wrong button being clicked. It may look the same to Sikuli, but it is not the same functionally.

On top of that, I am now saving images in source-control (GIT) which I am not in favor of. Why would I want binary files in source control? I cannot do a diff on them anyway.

SilkTest Borland logo

I have known Borland as a company for a long time yet in the past 10 years have not really worked with any of their tools. A short summary of how they see themselves:

With Silk Test, there’s no need to understand coding so even non-technical people like your business analysts can build tests and get fully involved. This 13.5 release also breaks new ground by working with all the latest browsers, so a single script is all you need.

Well, there are some issues with that statement of course, cause a single script is always doomed to fail in the most horrid ways imaginable, but still, SilkTest is a nice tool to work with.

The good

The reason for looking at SilkTest was because I would like to have a tool now which is future proof for the organisatio. In other words, will this tool support further test automation on the end-to-end chains within this large organisation. One really important qualifier for that is solid SAP support. My Proof of concept on SilkTest started off looking into SAP support. The way Silk handles SAP I can simply summarize with one word: good. Out of the box it managed to select the correct SAP instance from the system selection popup, login without issues and after a few attempts execute a bunch of transactions. In other words, I was happily surprised! Most test automation applications I had on the longlist have serious issues in dealing with SAP.

The bad and the ugly

UISpy view of the applicationThe not so nice side of SilkTest in my opinion is that the recorded code is somewhat ugly, if not really ugly and not very friendly to read and through that probably also to maintain. This however is just a minor nuisance compared to the next issue.

Since the application under test is being served through an RDP tunnel I have no access to the object ID’s. In other words, it is difficult to recognize objects on the application. In SilkTest it is not merely difficult, it is close to impossible. The only runnable way to do so I found is to record the tests based on the screen coordinates and then manually add assertions all over the place. However since SilkTest doesn’t see what it is trying to test, getting the assertions in is really hard. What do you put the assertion on? There is no object to verify.

In other words, this is a disqualifier for SilkTest in this context.
